Elevators are the backbone of vertical mobility in modern buildings, and behind every smooth, safe ride lies a hidden hero: the elevator guide rail. These structural components are critical to ensuring not only passenger comfort but also operational safety and long-term performance of elevators.
In this comprehensive guide, we’ll explore everything you need to know about elevator guide rails—including their functions, types, specifications, installation tips, and selection criteria.
Elevator guide rails are vertical tracks installed in the elevator shaft to direct the movement of the elevator car and counterweight. They serve as the physical path the car follows as it moves between floors. Without them, the elevator could sway, vibrate, or even derail, posing serious safety risks.
Whether in a low-rise residential building or a high-speed skyscraper lift system, guide rails play a crucial role in:
Guide rails keep the elevator car and counterweight on a predefined path. This is vital in high-rise buildings where even slight lateral deviations can result in noise, friction, or misalignment.
In case of overspeed or freefall, the elevator’s safety gear clamps onto the guide rail to stop the car. Thus, the rail must have sufficient mechanical strength to absorb these forces.
Guide rails stabilize the elevator car during travel, reducing vibrations and enhancing riding comfort, especially at higher speeds or heavier loads.
Elevator guide rails are not one-size-fits-all. The selection depends on the building type, elevator load, speed, and application. Here are the most common types:

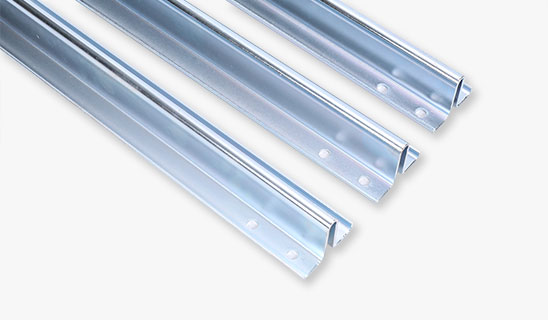

Structure: Made from solid steel bars.
Use Case: Suitable for high-rise buildings or heavy-duty freight elevators.
Advantages: High strength, excellent durability, superior performance under high load and speed.
Typical Model: T89/B, T127/B

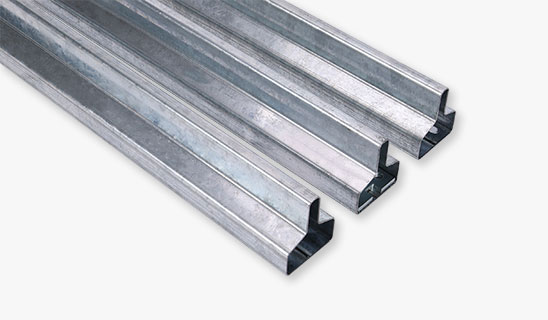

Structure: Tubular cross-section with a hollow center.
Use Case: Ideal for mid-rise or medium-duty applications.
Advantages: Lighter weight, easier installation, cost-effective for moderate performance demands.
Structure: A variation of hollow rails with sealed ends to prevent deformation or dust ingress.
Use Case: Used in safety-sensitive or enclosed shaft environments.
Advantages: Enhanced rigidity, better dust protection, improved safety.
Elevator guide rails typically conform to international manufacturing standards such as ISO 7465, EN 81, or GB7588. Key specifications include:
Length per Piece: Standard 5 meters, extendable via fishplates.
Materials: Hot-rolled steel or cold-drawn steel.
Machining: Machined (precision-ground) for high-speed lifts, unmachined (black rails) for low-speed lifts.
Section Profiles: Common sizes include T70-1/B, T75-3/B, T89/B, and T127/B.
Note: Machined rails offer better straightness and surface smoothness, reducing wear on guide shoes and increasing overall ride quality.
Proper installation is critical to ensure the rails function safely and effectively. Key steps include:
Vertical Alignment: Use plumb lines or laser levels to ensure straight vertical alignment.
Joint Connections: Rails are connected with fishplates (joining plates), which must be flush without steps or gaps to avoid jerks during operation.
Fixing Method: Rails are anchored to the shaft wall using brackets and clips at regular intervals.
Gap Control: Maintain minimal clearance between guide shoes and the rail surface to reduce noise and wear.
Regular Inspection: Check for corrosion, loose bolts, or physical deformation.
Lubrication: Sliding guide shoes require occasional lubrication to reduce friction.
Cleaning: Remove dust and debris to prevent blockage or misalignment.
Realignment: Periodically verify the vertical plumb of the entire rail system, especially after seismic activity or extensive building settlement.
Elevator guide rails are more than just metal bars in a shaft—they are a foundational part of any elevator system. By understanding their functions, types, specifications, and installation requirements, builders and elevator technicians can ensure a smoother, safer, and longer-lasting elevator operation.
For manufacturers, engineers, or procurement managers, investing in high-quality, properly specified guide rails is crucial for both performance and compliance.
